Calibration Using SMART-CAL Station
Sensit Gold G2 - Multi-Gas Detector
SENSIT® GOLD
G2
Combustible Gas Leak Detector
SENSIT® GOLD G2 is a combustible gas indicator (CGI) used for gas leak
surveys, investigations, gas leak pinpointing, gas pipeline purging and
confined space applications.Displays Up To 4 Gases
• LEL (%Volume and PPM Optional)
• Oxygen
• Carbon Monoxide
• Hydrogen Sulfide
• Hydrogen Cyanide (Optional)
Selectable Gas Type
• Methane (Natural Gas)
• Propane
Certifications: .ATEX, UL
SENSIT® GOLD G2 is the most user-friendly and versatile gas leak detector available today!
Audible tick rate helps find gas leaks fast!
Key Benefits
- Simple Operation
- Measures up to 4 gases:
- CH4 – Methane (LEL - %Volume and PPM Optional)
- O2 – Oxygen
- CO – Carbon Monoxide
- H2S – Hydrogen Sulphide
- Hydrogen Cyanide (Optional)
- Bright Graphic Display
- LED Warning Lights
- Loud Audible Alarm
- Internal Pump - Fast Sampling
- Digital "Tick" Control
- Lowest Cost, Long Life Sensors
- Data Logging and Internal Memory
- Exceptional Water Protection
Applications
- Combustible Gas Leak Detection
- Gas Leak Survey
- Underground Leak Pinpointing
- Carbon Monoxide Investigations
- Confined Space Monitoring
- Combustible Gas Measurements
- Pipeline Purging (NFPA 54 Compliant)
- EPA Method 21 VOC Emissions Testing
Partial List of Gasses Sensed
- Acetone
- Alcohol
- Ammonia
- Butane
- Gasoline
- Halon
- Hydrogen
- Jet Fuel
- Ethylene Oxide
- Methane
- Natural Gas
- Propane
- Refrigerants
- Solvents

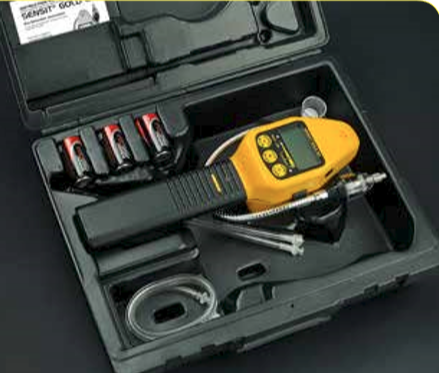

What's included with the SENSIT Gold G2
- Gold G2 Combustible Gas Leak Detector
- Hard Carrying Case
- 3 x "C" Batteries
- Extra Sensor Cap
- Wrist Strap
- T10 Allen Wrench
- Instruction Manual
Specifications
| Dimensions | 11.5 x 3 x 2.32" (29.2 x 7.6 x 5.9cm) |
| Weight | 1.2lbs (544g) |
| Operational Temperature | -4 to 104°F (-20 to 40°C) |
| Battery Life | Alkaline: Approximately 18hrs continuous |
| Sensor Type | Resolution | Range | Accuracy |
|---|---|---|---|
| LEL | 0.1% up to 2.0% | 0-100% LEL | ±10% |
| PPM* | 1 ppm or 10 ppm | 0-10,000 ppm | ±10% |
| % Natural Gas | 0.1% | 5-100% Gas | ±5% |
| % Propane | 0.1% | 2.2-100% Gas | ±5% |
| Oxygen | 0.1% | 0-25% | ±0.2% or 10%** |
| Carbon Monoxide | 1 ppm | 0-2,000 ppm | ±5 ppm or 5%** |
| Hydrogen Sulfide | 1 ppm | 0-100 ppm | ±2 ppm or 5%** |
| Hydrogen Cyanide | 1 ppm | 0-30 ppm | ±1 ppm or 5%** |
|
*PPM Optional (Ranges) |
0-2,000 ppm |
0-5,000 ppm |
0-10,000 ppm |
| **Whichever is greater |
