SeCorr® 08 Correlator

A Leak Noise Correlator (LNC) with the latest DSP-techniques for the calculated detection of water leakage.

Key Benefits

System components

Receiver

  • Display 320 x 240 pixels with background LED illumination

  • PC connection for information download

  • Socket for direct connection of a variety of microphones

  • BNC connector for antenna input with 90 deg rod aerial (rotary)

  • 1 or 2 radio channelsBuilt in NiMH rechargeable batteries and 12V socket for direct power or charging from vehicle

  • Operating by 12 V= from a vehicle is possible

  • Operating/storage temperature: -10° … +40 °C / -20° … +60 °C

  • Weight: approx. 1.3 kg

  • Dimensions (W x H x D): approx. 12.5 x 18 x 6.5 cm

  • Operating time: approx. 8 hours

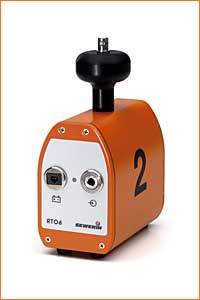

Transmitter

As soon as the microphones receive the noise from a leak the signal is automatically amplified to the optimum level and transmitted digitally along with the amplification details to the SeCorr® 08.

Both pieces of information are analyzed and processed by the SeCorr® 08. Utilizing 500mW transmitters signal transmission is clear and strong. Correlation of up to 4km is possible; local conditions may affect the range. Even if the radio transmitter is located within buildings or behind cars or trees correlation can be carried out successfully.

Since correlation requires two microphones, these can either be connected to both radio transmitters or if using only one radio channel, directly to the SeCorr® 08.

  • Automatic microphone recognition when attached

  • Automatically on when microphone connected

  • Selectable low-pass filter to increase performance on non-metallic pipes

  • Automatic signal control

  • 500 mW output power level with optimal selectivity

  • Operating/storage temperature: -10° … +40 °C / -20° … +60 °C

  • Weight: approx. 1.3 kg

  • Dimensions (W x H x D): approx. 12.5 x 19 x 7.3 cm

  • Operating time: approx. 10 hours

Sensors

Highly sensitive Piezo accelerometers record noises in the frequency ranges of approx. 1 to 10,000 Hz. A range of adapters enables connection to a wide variety of measuring points.

Hydrophones do not pick up the sound from the pipe material, but directly out of the water column. This offers a considerable improvement of the location range, especially with correlations on plastic pipes. Locating leaks over several hundred meters is possible.

Software

  • Software "Professional" for all location demands
  • Software "Standard" for the less experienced operators

Case

This robust plastic case offers space for all system components. The Receiver and two transmitters can be charged simultaneously inside the closed case.
