SONDES
Sondes are small radio transmitters that are typically pushed through non-metallic pipes in order to locate them. Sondes are usually attached to a duct rodder to allow them to be easily pushed through bends and gradients. There are various application specific models, depending on pipe material, diameter and depth. Soil conditions may also play a significant role in sonde selection.
Key Benefits
-
Detectable up to 50ft deep
-
Range of Sizes for Different Pipes & Ducts
-
Several Frequencies Available
Pricing
| Image | Model # | Description | Price (US$) |
|---|---|---|---|
 |

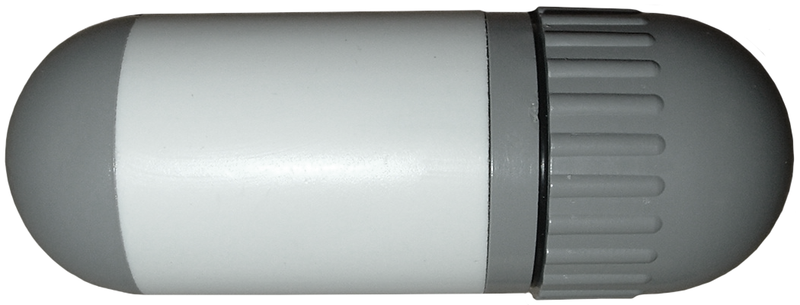

001-00116-03 | Sewer Sonde, 512Hz | 345.00 |
|
|

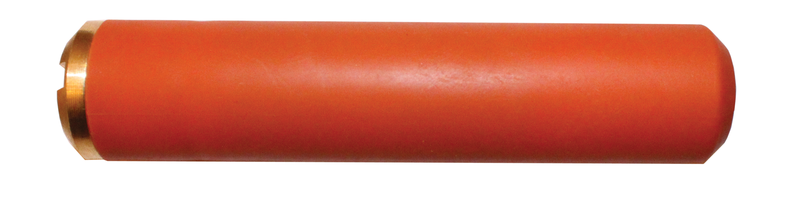

001-00281-00 | Mid Sonde, 512Hz (0.9" x 3.5", 512Hz, 5Hrs on 1 x AAA Battery & 25ft Max Depth) | 345.00 |
|
|
001-00281-03 | Mid Sonde, 8KHz (0.9" x 3.5", Hz, 8KHz, 5Hrs on 1 x AAA Battery & 25ft Max Depth) | 345.00 |
|
|
001-00281-02 | Mid Sonde, 33KHz (0.9" x 3.5", 33KHz, 5Hrs on 1 x AAA Battery & 25ft Max Depth) | 345.00 |
 |

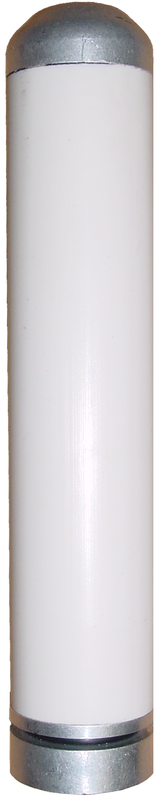

001-00481-00 | Fiber Sonde, 512Hz (0.9" x 3.5", 512Hz, 5Hrs on 1 x AAA Battery & 25ft Max Depth) | 345.00 |
|
|
001 00481 01 | Fiber Sonde, 815Hz (0.9" x 3.5", 815Hz, 5Hrs on 1 x AAA Battery & 25ft Max Depth) | 345.00 |
 |
001-00278-00 | Mini Sonde, 33KHz (0.625" x 2.1", 33KHz, 5Hrs on 1 x AAA Battery & 3ft Max Depth) | 345.00 |
 |
10/SB0338-8 | Super Sonde (2.5" x 12.5", 8KHz, 5Hrs on 1 x 9V Battery & 50ft Max Depth) | 895.00 |
 |
10/SB0338-33R | Super Sonde (2.5" x 12.5", 33KHz, 5Hrs on 1 x 9V Battery & 50ft Max Depth) | 895.00 |
