Watch Hardware Training Video
New STREAM C - 35 Antenna, Dual Polarizing Ground Penetrating Radar
The Stream C represents a substantial improvement in real time surveys with greatly increased detection and productivity.

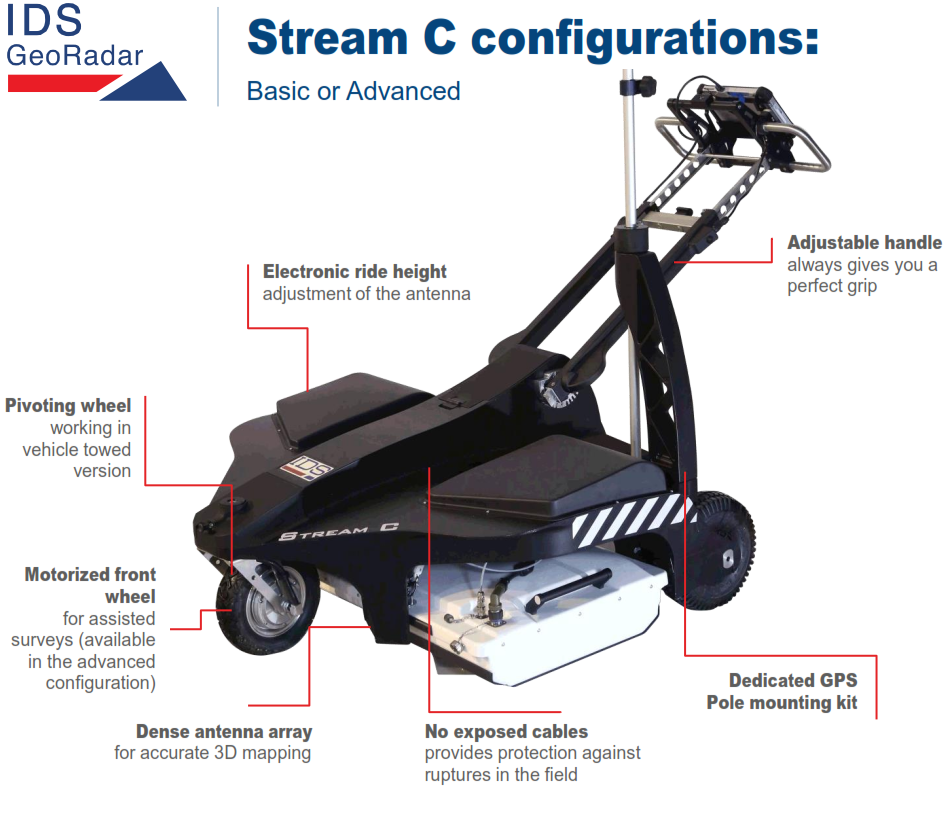

The solution is available in two versions:
-
a compact, lightweight array that can be pushed over all terrain
-
a drive assisted array with electronic ride height adjustment
·
Massive array of 34 antennas in two polarizations:
this enables an accurate 3D reconstruction of the underground
utility network to be created in a single scan.
·
Automatic Pipe Detection (APD): real-time
automatic detection of buried pipes and cables
·
Compact size: Stream C’s small dimensions enable
it to survey areas inaccessible to larger array systems while
maintaining the same accuracy.
·
Robust construction: built to the highest
standards and with hardwearing materials so that it can be used in
harsh, demanding environments.
·
3D radar tomography: real-time tomography on a GPS
or total station assisted cartographic background.
·

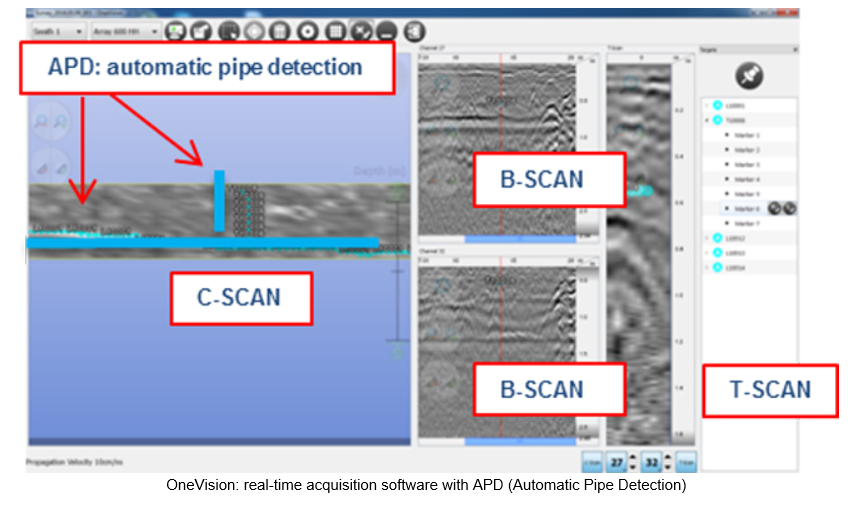

OneVision: real-time acquisition software with APD
·

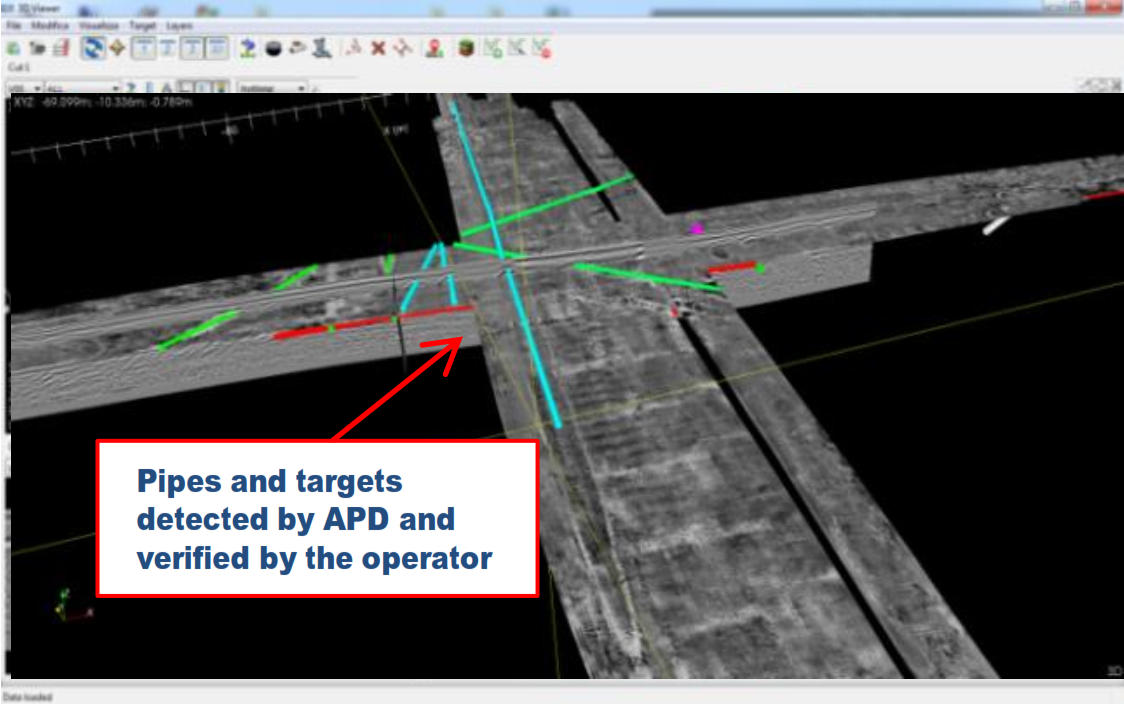

Professional subsurface survey: pipes, cables and
buried objects can be automatically transferred to CAD and GIS formats,
allowing a complete subsurface GIS based digital map to be quickly
produced.
Key Benefits
-
High Productivity: Surveys only need to be performed in one direction to ensure optimal detection for both longitudinal and transversal pipes.
-
No Advanced Training Required: The system automatically detects and locates the position of pipes in real time and displays them on screen.
-
Reduced User Fatigue: Thanks to electronic ride height adjustment and a motor assisted drive wheel.
- Facilitates Large Surveys: The system can be towed manually or with a small vehicle, increasing the acquisition speed (up to 6 km/h).

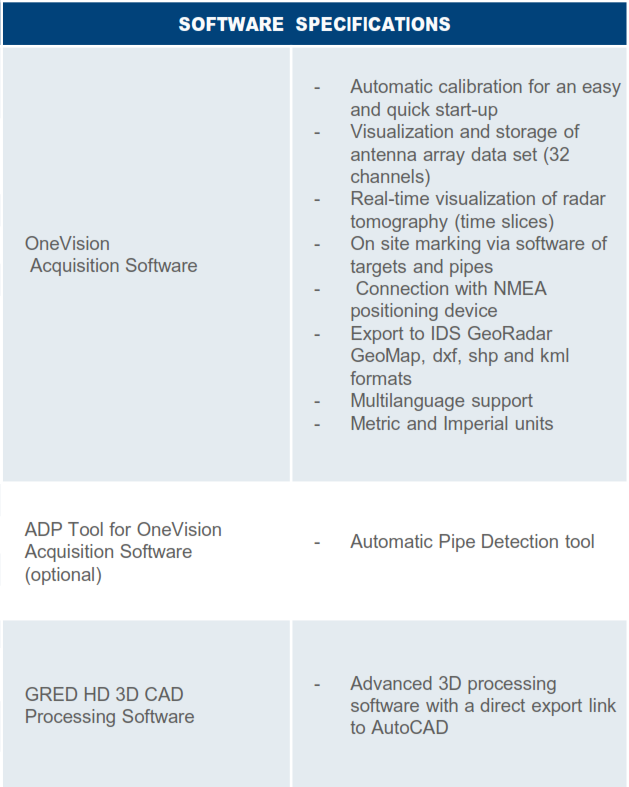

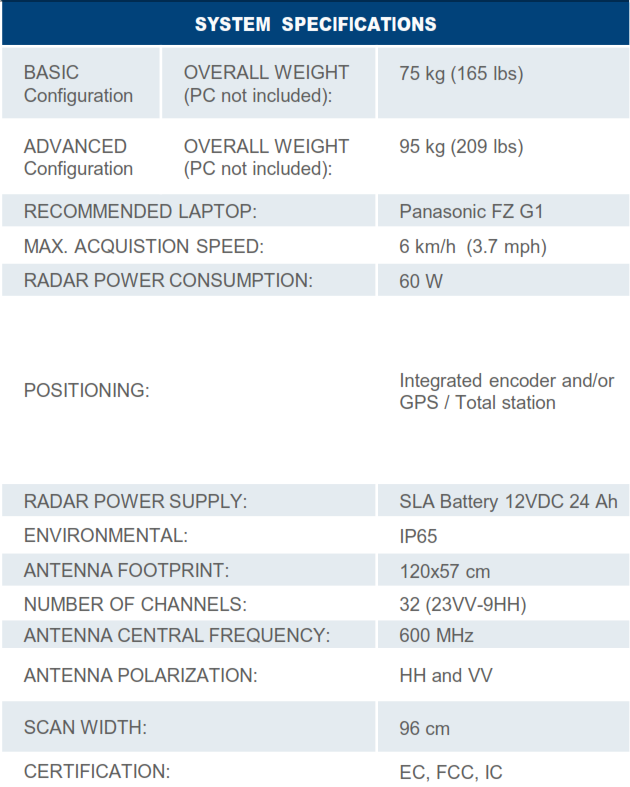

Technical Specifications
Pricing
We also have a complete range of Pipe & Cable Locators, including Acoustic & the Utra-Trac Acoustic Pipe Locator (APL) for plastic pipe location.
