SeCorr® C 200 Correlator
The SeCorr C200 water leak correlator is the newest and most capable correlator ever produced by Sewerin. The SeCorr C200 platform offers a large 5.7' high-resolution VGA display, a touchscreen that can be reliably operated with gloves and an operating system that is clearly laid out and easy to operate. The SeCorr C200 is lightweight and ergonomic. Its strong triangular belt enables it to be carried effortlessly. Wireless headphones provides complete "cable-free" operation. The new RT 200 radio transmitters feature 500 mW high-performance transmission paths and built-in light. The RT 200 radio transmitters turn-on as soon as the microphone is plugged in. The tough carry case provides for recharging with a single mains plug in.
The sophisticated firmware of the SeCorr® C 200 means that the measurement sequence is almost fully automatic. Once the pipeline data has been entered and the measurement started, all other steps are performed without the intervention of the operator. The measured noises are constantly analysed in the background and the optimal filter settings selected.
Key Benefits
- Digital Signal Processor (DSP) – Fast accurate calculations allowing quicker leak location
- Direct microphone connection – Allows SeCorr® C 200 to be used as a basic electro-acoustic leak detector
- High resolution VGA color touchscreen
- All system components contained in one robust case – All parts can be recharged whilst remaining in the case
- Lightweight ergonomic design – Comfortable to use over a full working day
- Application specific menu structure – Intuitive operator sequences
- Fast Fourier Transformation (FFT) correlation – precise location even with the most challenging leaks
- Radio transmission of over 6667 ft (2,000 m) – Correlation possible over long distances
- Wide selection of components available – Select optimal configuration for the prevailing conditions
- Software automates the advanced functions
- Input via durable touchscreen even with gloves on
- “Coherence analysis” – Allows automatic or direct settings of frequency filters for optimal performance and easier location of the most difficult leaks noises
System components

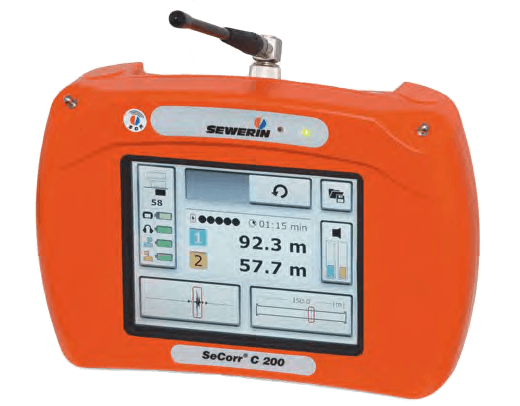

Receiver
-
Large 5.7' high-resolution VGA display w/ touchscreen
-
PC connection for information download
-
Socket for direct connection of a variety of microphones
-
TNC connector for antenna input with 90 deg rod aerial (rotary)
-
1 or 2 radio channels w/ Built in Li-Ion rechargeable batteries and 12V socket for direct power or charging from vehicle
-
Operating by 12 V= from a vehicle is possible
-
Operating/storage temperature: -10° … +40 °C / -20° … +60 °C
-
Weight: approx. 1.3 kg
-
Dimensions (W x H x D): approx. 12.5 x 18 x 6.5 cm
-
Operating time: approx. 8 hours
Transmitter
As soon as the microphones receive the noise from a leak the signal is automatically amplified to the optimum level and transmitted digitally along with the amplification details to the SeCorr® C 200.
Both pieces of information are analyzed and processed by the SeCorr® C 200. Utilizing 500mW transmitters signal transmission is clear and strong. Correlation of up to 4km is possible; local conditions may affect the range. Even if the radio transmitter is located within buildings or behind cars or trees correlation can be carried out successfully.
Since correlation requires two microphones, these can either be connected to both radio transmitters or if using only one radio channel, directly to the SeCorr® C 200.
-
Automatic microphone recognition when attached
-
Automatically on when microphone connected
-
Selectable low-pass & high-pass filters to increase performance on both metallic & non-metallic pipes
-
Automatic signal control
-
500 mW output power level with optimal selectivity
-
Operating/storage temperature: -10° … +40 °C / -20° … +60 °C
-
Weight: approx. 1.3 kg
-
Dimensions (W x H x D): approx. 12.5 x 19 x 7.3 cm
-
Operating time: approx. 10 hours
Sensors
Highly sensitive Piezo accelerometers record noises in the frequency ranges of approx. 1 to 10,000 Hz. A range of adapters enables connection to a wide variety of measuring points.
Hydrophones do not pick up the sound from the pipe material, but directly out of the water column. This offers a considerable improvement of the location range, especially with correlations on plastic pipes. Locating leaks over several hundred meters is possible.
Software
- Software is Easy to Use w/ Simple Screens
Case

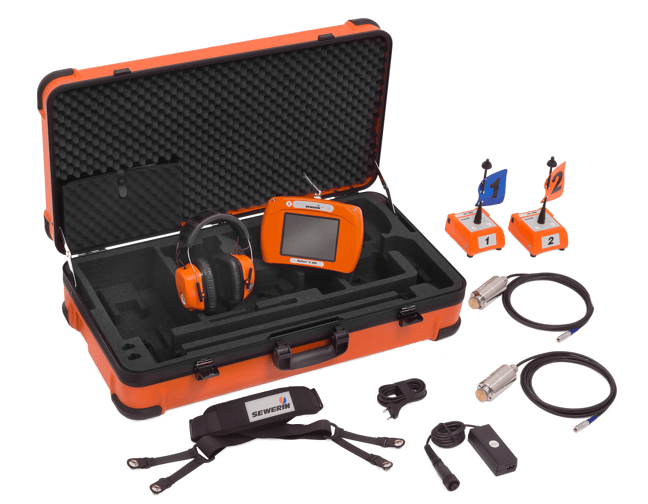

This robust plastic case offers space for all system components. The Receiver and two transmitters can be charged simultaneously inside the closed case.
