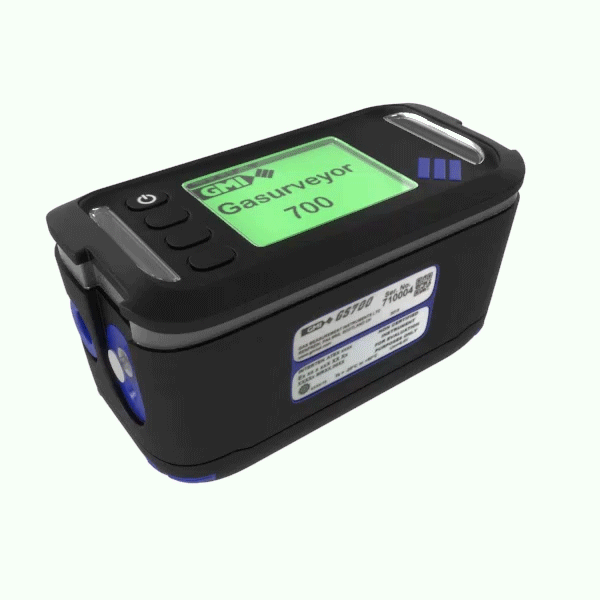

Gasurveyor 700- A 4-Gas Detector
Utilising the latest infrared gas detection technology in a robust and reliable design, the Gasurveyor 700 (GS700) is a highly configurable instrument with leading performance and a user-friendly interface which makes it the perfect choice for all gas utility applications.
Ensuring compliance
Intelligent data-logging functionality together with optional GPS
mapping simplifies data gathering. Our Instrument Management System
improves fleet management by providing access to field usage reports,
calibration history, investigation mapping and many other bespoke
reports; making it easier for our customers to demonstrate compliance.
Natural gas discrimination
Quickly determines the source of gas leaks, whether it’s pipeline gas or
naturally occurring biogas; saving valuable time and reducing detection
related costs.
Flexible configuration
The GS700 can be configured to meet specific application needs and can
be customised to suit a range of user requirements, settings and
languages.
Key Benefits
- Simple Operation
- Measures up to 4 gases:
- CH4 – Methane (LEL)
- O2 – Oxygen
- CO – Carbon Monoxide
- H2S – Hydrogen Sulphide
- Audible, visual and vibrating alarms
- LEL & Volume Gas (infrared)
- Optional sensors including: PPM, O2, CO, H2S
- Barhole Mode – configurable
- Soft-key Operation
- Communication: IrDA & Bluetooth (optional)
- 360° Alarms
- Ingress Protection – IP55
- Alkaline or Rechargeable battery options.
- Internal pump (optional)
- Lightweight yet robust construction
- Sensor integrity checking
- Ease of maintenance
- 2-YR WARRANTY
Applications
- Gas Leak Outdoors
- Pipeline Gas Tests
- Purging
- Surveying
- Bar-holing
- Confined Space Monitoring.
Specifications
| LEL (HC) | 0-100% | ||||||||||
| PPM (HC) | 0 - 10,000ppm | ||||||||||
| % VOL (HC) | 0 - 100% | ||||||||||
| O2 | 0-25% | ||||||||||
| CO | 0-1000ppm | ||||||||||
| H2S | 0-100ppm | ||||||||||
| Dimensions | 190 (H) x 98 (W) x 107 (D) mm | ||||||||||
| Weight | 1400g (3.09 lbs) w/ Alkaline Batteries | ||||||||||
| Humidity | 0-90% RH non-condensing | ||||||||||
| Temperature | -4 degF - +122 degF | ||||||||||
| IP Rating | 55 | ||||||||||
| Power | Alkaline (3 x D) or Rechargeable Batteries | ||||||||||
| Run Time (Rechargeable) | > 20hrs | ||||||||||
| Run Time (Alkaline) | > 15hrs | ||||||||||
| Charging Time | < 4hrs | ||||||||||
| Alarms | LED / Audible (85 dB at 0.3m) / Vibration | ||||||||||
| Certifications |
|
