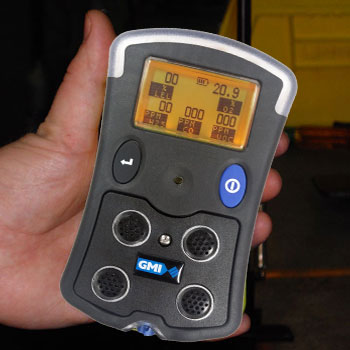

PS500 - A 5-Gas Detector
The PS500 can be tailored to detect up to five gases with its toxic and catalytic sensors, photo ionisation detectors and infrared capabilities. ‘Plug and Play’ option allows the customer to ‘plug in’ a new board with a different gas range.
The PS500 is particularly useful in noisy environments, featuring a very loud (95dBA) penetrating and distinctive audible alarm together with high visibility large area visual alarm. Pump, diffusion or both together, allowing pumped sample for pre-entry checking and diffusion in confined space working, thus maximising battery life. A robust, moulded, rubberised casing guaranteeing Hi-Impact resistance, the PS500 can be used in the most demanding environments.
Key Benefits
- Simple Operation
- Measures up to 5 gases:
- CH4 – Methane (LEL)
- O2 – Oxygen
- CO – Carbon Monoxide
- H2S – Hydrogen Sulphide
- Other flammable gases, available on request
- Internal pump (optional)
- Lightweight yet robust construction
- Sensor integrity checking
- Ease of maintenance
- Over 15 plug-and-play smart sensors to choose from
- Wide range of VOC’s with 2 different PID sensors
- Flexible configuration to suit your specification
- Piercing 95 dB audible plus 360-degree high visibility light bar
- On-board datalogging for calibration certificates, data management and event logging
- High impact rubberised case
- IP65
- Low cost of ownership
- 2-YR WARRANTY
Applications
- Personal safety in confined space – H2S/O2/CO hazards
- General safety in confined space
- Shipping – general
- Shipping – fumigant
- Breweries – CO2 hazard
- Plant shutdown
- Permit to work systems
- Pressurised tunnelling
- Fleet auxiliary
Specifications
| LEL | 0-100% | ||||||||||
| O2 | 0-25% | ||||||||||
| CO | 0-1000ppm | ||||||||||
| CO2 | 0-5% VOL | ||||||||||
| H2S | 0-100ppm | ||||||||||
| Dimensions | 140 (H) x 85 (W) x 45 (D) mm (5.5" x 3.3" x 1.7") | ||||||||||
| Weight | 400g (14 oz.) | ||||||||||
| Humidity | 0-98% RH non-condensing | ||||||||||
| Temperature | 4 degF - 122 degF | ||||||||||
| Enclosure | High impact, rubberized polycarbonate | ||||||||||
| IP Rating | 65 (Dust tight & water resistant) | ||||||||||
| Display | LCD w/ Backlight | ||||||||||
| Power | Alkaline (3 x AA) or NiMH Batteries | ||||||||||
| Run Time (Diffusion) | > 14hrs | ||||||||||
| Run Time (Pumped) | > 12hrs | ||||||||||
| Charging Time | < 4hrs | ||||||||||
| Alarms |
LED / Audible (95dBA) / Vibration - 3 alarms for O2 - 2 alarms for LEL |
||||||||||
| Datalogging | - Timed: 24-Hrs of timed logs at 1 log/min - Session: Minimum of 180 logs - Calibration: 8 calibration logs |
||||||||||
| Sampling | Maximum tubing length = 30m (98ft) (Response times increase by approx. 1 second per meter/3 ft of tubing used) |
||||||||||
| Certifications |
|
