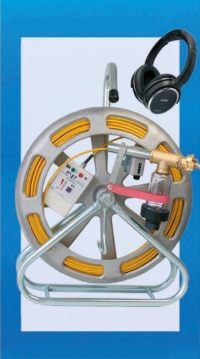

PipeMic-M & PipeMic-XL Water Leak Locators
PipeMic allows accurate leak location by utilizing a sensitive microphone inside the pipe that is able to detect the smallest and multiple leaks. The entire rod and microphone head can both be located using a standard pipe & cable locator and a built-in counter provides leak position verification.
Key Benefits
- locating leaks with the utmost precision
- locating pipes including the endpoint
- no interference from ambient noise
- sound transfer to speaker/headphones via Bluetooth
- both pipe location and leak detecting process
- rod counter on reel
- quick measurement results
- easy to operate
- integrated disinfectant tank
Kit Includes
- aluminium reel with frame
- glass fibre rod
- flexible sensorhead
- pressure tight lock with integrated disinfectant tank
- mechanical rod counter
- Bluetooth transmitter
- Bluetooth headphones
- instruction manual
- accessory case with:
- disinfectant, aerosol- and refill bottle
- protective gloves
- GEKA couplings, 1" IT and 1" AT
- spare battery
- charging adapter
- USB charging cable
- hose piece
- BlueTooth Dongle
- BlueTooth Speaker
Technical Specification
PipeMic
| design: | aluminium die casting / glass fibre |
| dimensions: | 570 x 400 x 160 mm |
| diameter: |
glass fibre: 4.5 mm measuring head: 12 mm |
| length: | 570 mm basket - max. 120 m |
| weight: | 7 kg |
| pipe lock: | 16 bar |
| temperature range: | 0°C up to 50°C |
| safety class: | IP 66 / IP 68 |
| locating depth: | up to 3.5 m |
PipeMic XL
| Design/construction: | galvanized steel tube |
| dimensions for 750 mm basket: | 750 x 380 x 830 mm |
| dimensions for 1000 mm basket: | 1000 x 390 x 1080 mm |
| diameter: |
glass fibre 9 mm
sensor head 20 mm |
| length: |
750 mm basket - max. 150 m 1000 mm basket - max. 300 m |
| pipe lock: | 16 bar |
| connection: | GK coupler |
| transmission: | Bluetooth 2.0 |
| battery operation: | 9 V Block |
| operation time: | > 12 h |
| temperature range: | 0°C to 50°C |
| protection class: | IP 66 / IP 68 |
| locating depth: | up to 3,5 m |
