Professional Pipe & Cable Locator Kit\
The Brand New PathFinder PLS .
Built
on a proven design, and with Pathfinder SAF Technology™ at its core, the

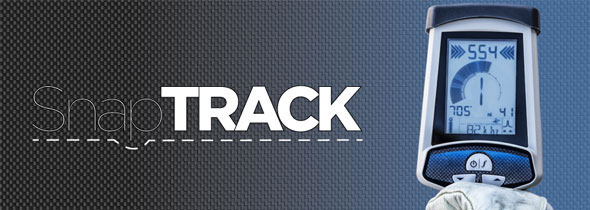

SnapTRACK®
offers RYCOM’s most advanced signal acquisition and filtering technology. The
SnapTRACK®®
cable & pipe locator offers utility locators FrequencyFlex™ allowing users to
adapt the system to their specific needs. Multiple active frequencies allow the
user to accurately locate with a minimum of interference while maintaining the
ability continue locating past faults and around conduit bends. Passive
frequencies identify "live" and charged lines by their naturally occurring
electromagnetic fields. The
SnapTRACK®®
offers multiple passive frequencies -- 50Hz, 60Hz, Radio Frequency, Cathodic
Protection Rectifier & CATV -- allowing line locating without the use of a
transmitter.

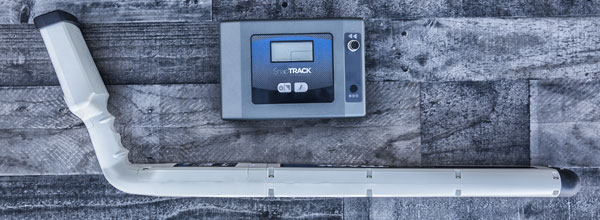

Updated transmitter functions include improved transmitter induction, multi-frequency coupled induction ranging from 8 kHz to 118 kHz, and automatic impedance matching for direct connections. The5 watt or 10 watt transmitter has the ability to simultaneously apply an two frequencies to a utility. From one transmitter setting the user can locate the main line as well as other services by "lighting up" the entire site. This set-and-forget feature saves you time and money by reducing the need to repeatedly relocate the transmitter. All functions are accessed via weather-proof membrane buttons and both user input and transmitter status are verified with audible responses. The ergonomically designed and balanced SnapTRACK® receiver provides instant push-button depth up to 25 feet and current measurement to help identify target utilities in crowded easements. Proximity cues to the tracing signal are given to the user through either peak or null tone modes while the backlit digital display provides both relative and actual signal strength.
Conduit pinches can be located using the optional Sondes. Operating on
active frequencies of 512Hz, 640Hz, 815 Hz, 8 kHz, or 33kHz Rycom
Instruments® Sondes are pushed into non-pressurized conduits and pipes
until they reach the point of pinch or blockage. Traceable 25 feet in
the air and 10 feet in cast iron, the SnapTRACK® receiver will identify
the precise location of the line blockage.
Rycom Instruments®, Inc. locators are designed and manufactured to make
utility locating as accurate as you need and as simple as you want.
Key Benefits
-
Simple 3 Button Interface
-
Fast Response
-
Ergonomic, Balanced Design
-
Water Resistant and Weatherproof Design for years of field use
-
FrequencyFlex™ - Any Frequency from 60Hz to 480 KHz
- Simultaneous Peak & Null Display
- Digital Depth
- Current Measurement
- Line Direction & Triangulation
- 3 Watt Transmitter
- PathLinkTM Transmitter Remote Control (Optional)
-
4 Year Warranty
